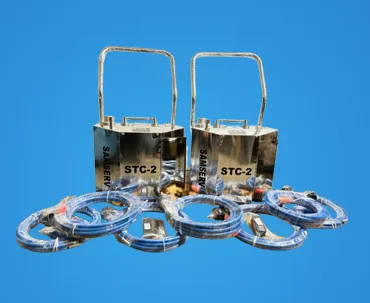

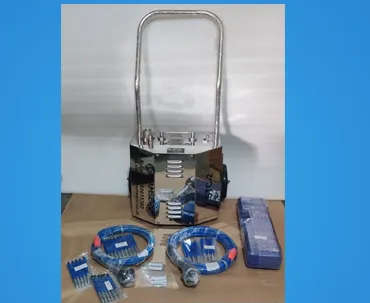

'SAMSERV' Electric Tube Cleaner, the brushes or other cleaning tools are rotated through a tube at tip of flexible shaft. Simultaneously water gets injected; hence loosen deposits leaving tubes cleaned.
All models consist of tool storage box, single direction foot switch, mobile dolly. 1 direction air foot switch is optional.
This machine are used in Distillery, MEE Evaporator, Condenser, Chillers, heat exchanger Tube cleaning system.
| Model No. | Power Supply (HP/Kw) | Speed (RPM) | Tube ID (mm) | Weight in Kg |
|---|---|---|---|---|
| STC-1 | 1 / 0.75 | 910 / 1440 | 7-25 | 30 |
| STC-2 | 2 / 1.5 | 910 / 1440 | 7-35 | 35 |

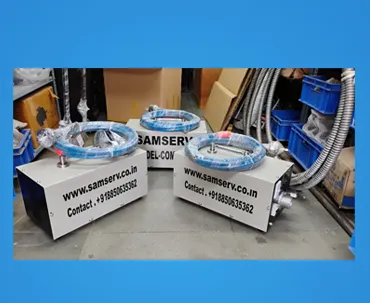

Portable machine which can be carried by technician on the move. Flexible shaft rotates at speed of 1440 rpm and water gets injected simultaneously through the nylon casing to the cleaning tool. As the tool removes the deposits, the water flow flushes them out. A solenoid valve ensures that water flows only when machine is running.
| Model No. | Power Supply (HP/Kw) | Speed (RPM) | Tube ID (mm) | Weight (Kg) |
|---|---|---|---|---|
| COMPACT | 0.5 / 0.40 | 910 / 1440 | 7 - 25 | 20 |
| COMPACT-1 | 1 / 0.75 | 910 / 1440 | 7 - 25 | 24 |
*All units available with various electrical specification:
115v 60 Hz, 115v 50Hz - 9 Amps.220 v 60 Hz, 220v 50Hz -4.5 Amps. Please specify while ordering
