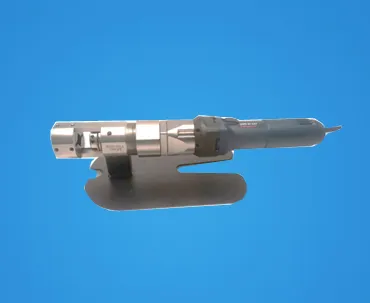

The PIPE 2.5 (OCM-2163) is a OD MOUNTED (OUTER DIA CLAMPING) heavy duty machine designed to bevel, face and prepare weld edges for heavy wall thickness tubes. Compact model Designed to do the best work of weld edge preparation.
| Drive | Pneumatic | Electric |
|---|---|---|
| Locking Range OD (mm) | 21-60 | 21-60 |
| Ideal Speed (RPM) | 450 | 300 |
| Torque (Nm) | 95 | 105 |
| Feeding stroke (mm) | 25 | 25 |
| Pneumatic Power (HP) | 1.85 | -- |
| Air Consumption (cfm) | 65-70 | -- |
| Air Pressure (psi) | 90 | -- |
| Electric Power (watts) | -- | 1100 |
| Weight (kg) | 21 | 14 |
| Voltage | - | 220-240 |
