We are one of the leading manufacturers and suppliers of an unparalleled range of Sugar Industry Tube Cleaning Tool . These are manufactured using finest grades of raw material, which are tested upon strict quality control measures. We make sure that these are designed as per the application-specific requirements of the clients. This electrically driven machinery is mounted on a portable trolley. The nature of scaling, tube ID & tube length decide length & size of flexible shaft & also decided the HP (horse power) of the motor.
| # | Model no. | Power Supply HP/Kw | Speed (RPM) | Tube ID |
|---|---|---|---|---|
| 1 | BTC-30 | 3/2.2 | 2800 | 30-60 |
| 2 | BTC-50 | 5/3.73 | 2800 | 35-150 |
| 3 | BTC-75 | 7.5/5.62 | 2800 | 80-200 |
It is used for cleaning of tube by transmitting power in terms of rotation from the motor unit to tool head cutter or brush within tube.
It is used for cleaning of tube by transmitting power in terms of rotation from the motor unit to tool head cutter or brush within tube.

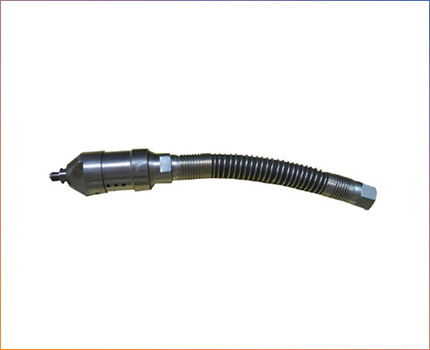

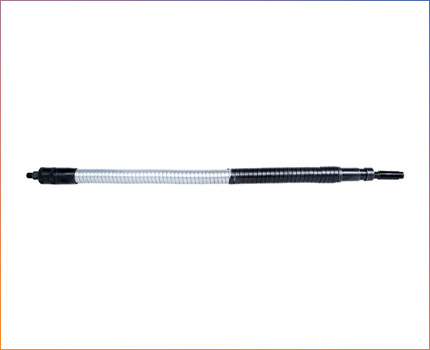

It is flexible, double interlocked, circular rounded, made of galvanized steel strip, Special spring steel lining is provided within outer casing to avoid any friction between inner core & outer casing.
| # | Model no. | Inner Core Dia | Outer Casing Dia | Tube ID |
|---|---|---|---|---|
| 1 | FS-1225 | 12mm | 25mm | Available upto 30 mtr |
| 2 | FS-1532 | 15mm | 32mm | Available upto 30 mtr |
| 3 | FS-1935 | 19mm | 35mm | Available upto 30 mtr |
Inner core, Outer casing, Hand piece, Inner core Tool end (Brush side) socket, Inner core Machine end (Motor side) socket, Outer casing Tool end socket, Outer casing motor end socket.
