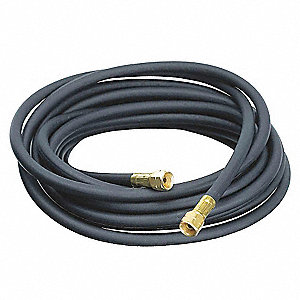

Hydraulic Hose
It is used for circulating hydraulic oil at high pressure.
| # | Steel Tube O.D. Mm | Copper Tube I.D.Inch | Mm | Inch | Model No. | Square Socket Inch | With EXPM-30/50/100 Drive No Load Speed (RPM) | Weight KG |
|---|---|---|---|---|---|---|---|---|
| 1 | 15-25 | 5/8-1 | 25-38 | 1-1.1/2 | HED-3 | 3/8 | 620/954/800 | 9.6 |
| 2 | 19-38 | 3/4-1.1/2 | 32-64 | 1.1/4-2.5/td> | HED-4 | 3/8 & 1 /2 | 350/480/400 | 9.7 |
| 3 | 38-76 | 1.1/2-3 | 50-102 | 2-4 | HED-5 | 1 /2 & 3/4 | 62/84/70 | 11 |
| 4 | 50-102 | 2-4 | -- | -- | HED-6 | 3/4 & 1 | 40/62/54 | 11.5 |
It is used for circulating hydraulic oil at high pressure.
Power cable length available upto 25mtr.

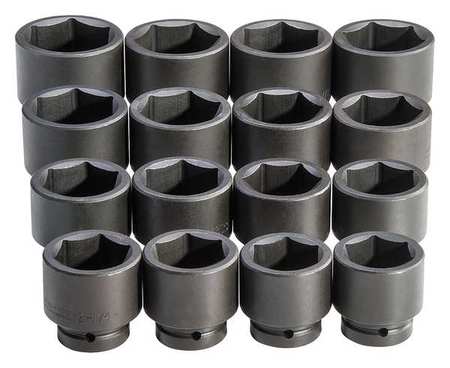

Connecting these sockets to drive & one end connects with tube expander.
