Tube Installation & Removal Tools
Grooving Tools

For Grooving In Tube Sheets: High production tool.
Ideal for use where 1 tool is needed per bore. One piece cryogenically treated tool bit ensures maximum life. Its suited for CNC application on account of 1 piece mandrel construction & short design. Note: Grooving tools are available for MM bore Sizes Available: 3/8" O.D. to 2.1/2" O.D

Internal Tube Cutter & One Turn Revolution Cutter

Push Type internal tube cutter quickly cuts through the walls of ferrous tubes in condensers and Heat exchanger as step in their Removal from the tube sheet. This sturdy "Push Type" internal tube cutters can be used with a portable Electric or Air Drill Motor. Releasing of inward pressure automatically retracts the Cutter Bit. This cutter is equipped with an adjustable collar suitable for reaching into tubes at various depths. Standard adjustable reach is 4" (101.6mm).
Sizes Available : 1/2" O.D. To 1.1/2" O.D

Manual Tube puller

Simple Design: Only two major parts reduce inventory No power needed: Manual insertion and removal of tube with a hand wrench. Ideal for field service application. Ease of use: Hex at back of spear allows tightening without disassembly of thrust mechanism.
Sizes Available : 1/4" O.D. To 1" O.D.

Grooving Tools

'1200' Series Tube Expander
Suitable for Tube Size : 1/2" O.D. to 1.1/2" O.D.
Roller length of Tube Expander 38.1mm & 57.1mm
Tube Sheet Adjustable Range:
FOR 1.1/2" Roller Length: 1.1 /2" to 12"
FOR 2.1/4" Roller Length: 2.1/4" to 12.3/4"

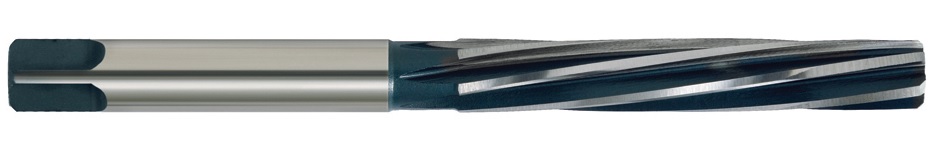

Tube sheet hole Reamer

Ideal for heat exchanger and condenser tube sheet reaming. High-speed steel, cryogenically treated & coated with Titanium, Nitride for long life.
