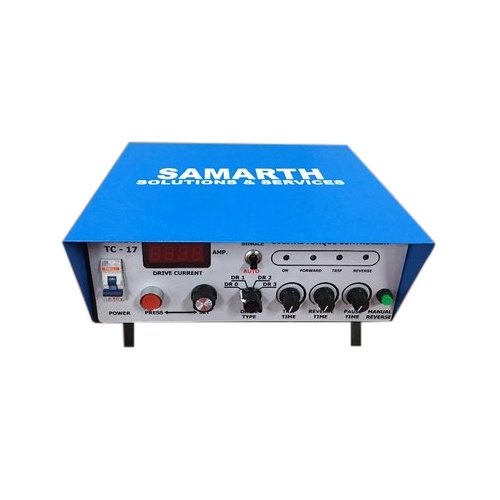

Electric Tube Expansion Drive Unit is governed by a separate Electric Control Panel which is adjusted by a simple Digital Display. When the Electrically Driven Motor reaches the desired Torque, the Control unit Mechanism automatically shuts off the Power and on pressing the Reverse Button the Tube Expander retracts out from the Tube. The Fully Automatic system ensures the Tube are rolled to maximum tightness without excessive cold worked stress.
| # | Model No. | Phase | Voltage Supply Volts | Current Maximum AMPS |
|---|---|---|---|---|
| 1 | TC - 17 | Single | 230 | 10 |
| 2 | TC - 20 | Single | 110 | 20 |

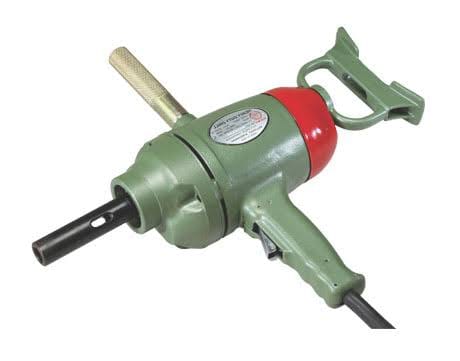

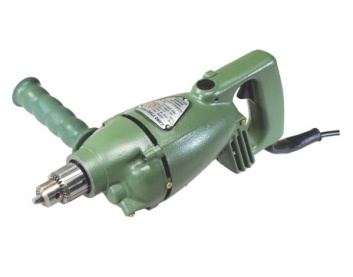

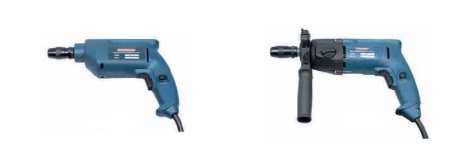

| # | DRIVE MODEL | EXPANSION RANGE | NO LOAD | Expansion Range | Full Load Current Amps | Full Load | Drive Weight in | ||
|---|---|---|---|---|---|---|---|---|---|
| 230V | 110V | SPEED R.P.M | SS Tube OD in mm | Copper Tube OD in mm | 230V | 110V | Torque Nm | Weight in Kg | |
| 1 |
D-0 |
D-0L |
700 |
6 to12 |
8 to16 |
1.3 |
2.6 |
0.36 |
2.8 |
| 2 |
D-2 |
D-2L |
560 |
16 to 28 |
19 to 34 |
2.7 |
8.0 |
2.2/3.0 |
7.7 |
| 3 |
D-2M5 |
D-2LM5 |
112 |
25 to 50 |
38 to 70 |
4.0 |
8.0 |
3.8 |
10.0 |
| 4 |
D-2M25 |
D-2LM25 |
21 |
38 to 63 |
— |
4.0 |
8.0 |
31.5 |
15.0 |
