Portable Pneumatic Choked Tube Cleaning Machine

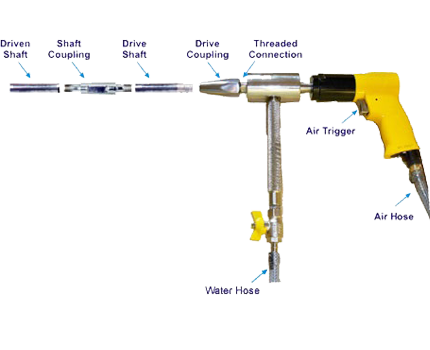

The portable pneumatic tube cleaners used for HEAVILY CHOKED TUBE CLEANING. Its hollow shafting of different diameters as per tube I.D. to be cleaned which can be coupled together to form lengths as per the length of the tube to be cleaned.

#	Model no.	Max Motor power	Speed RPM	Tube ID (mm)	Air Supply
1	PCT-600	0.6 hp/0.45kw	700	7-30	60psi@16cfm min & 90psi@16cfm max
2	PCT-1200	1.2 hp/0.90 kw	1000	7-30	60psi@16cfm min & 90psi@16cfm max

Water flows through the hollow tube and washes out deposits that are dislodged by the cleaning tools attached to the driven shafts. Typical cleaning tools used are carbide drills for severely clogged tubes, brushes for light deposits and buffing tools for final polishing of tubes. The water flow is independently controlled allowing the user to determine how much water is needed in the application.
