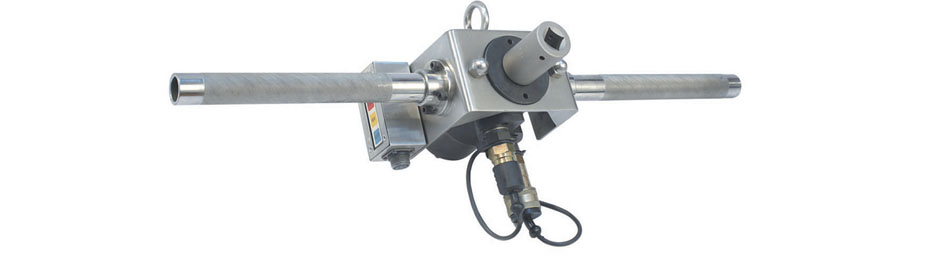

Hydraulic Tube Expansion Machine
  • Drive communicates with the pump via 9v DC remote control. This ensures safety & Eliminates the need of electrical.
  • Compatibility- Same power pack for all 4 drives to expand 5/8" OD to 4" OD tube.
  • Very high Torque developed- can expand large diameter, thick wall tubes in thick tube sheets easily.
  • Boiler erections get completed in record time.
  • Can be use for long working hours because drive is unaffected by heat.
  • Dual drive power pack is available to connect 2 drives to single power pack to cut down tube expansion time by further 50%.
  • Drive speed remains constant during the expansion cycle unlike electric or pneumatic drives.
  • Microprocessor controls on the pump automate the expansion cycle. Trip, pause & reverse times For the drive are adjustable.
  • No need for repeated manual STOP/ START of the drive during Expansion cycle- Complete automatic.
  • The hydraulic pump supplied with hydraulic drive incorporates the latest state of the technology resulting in a subcompact pump developing 100 bar pressure.
  • The system is mounted on four wheels for on site manevourability.
  • Expansion of tubes is regulated by adjusting pressure setting pump Once required amount of wall thinning is achieved the drive trips automatically.
# Powerpack model no. Electrical motor Voltage Oil tank capacity (LTR) Hydraulic Oil Max working pressure Standard hose size Weight in KG
1 EXPM-30 3 HP Single Phase 230V / 110V 30 SAE VG 68 100 BAR 1/2 x 10MTR 80
2 EXPM-50 5HP Three Phase 415V 45 SAE VG 68 100 BAR 1/2 x 10MTR 100
3 EXPM-100 10HP Three Phase 415V 138 SAE VG 68 100 BAR 1/2 x 10MTR 220
Spare Accessory Hydraulic tube expansion Machine:

Note : Drive supplied with forward, stop, reverse, auto buttons, quick release couplings, sockets and reaction bar.
Powerpack includes 2 hoses each of length 10 meters. If required longer hoses can be supplied.
